Description

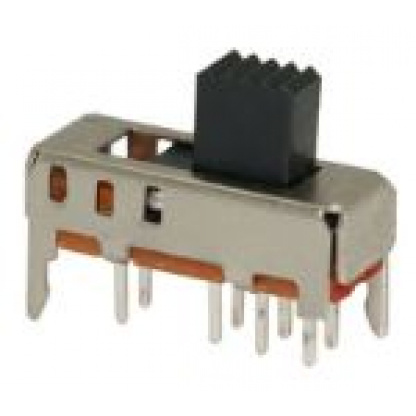

Model Number: SS-23E05
- Max. Current: 0.3A
- Max. Voltage: 50V
- Mechanical Life: 5000
- Temperature Range:-25~+70
- Withstand Voltage: 50V, AC/min
- Rated Load: DC 50V 0.3A
- Travel: 2.5+/-0.2mm
- Contact Resistance: 0.05Ω
- Insulation Resistance: 100MΩ
- Operating force: 200+/-100gf
- Lifespan: 5000times
