Description

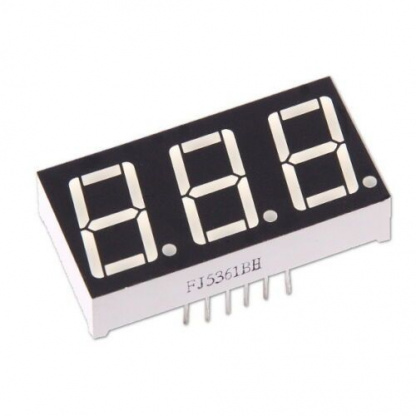

The 5631AS from Xlitx is a 0.56inch three digit common cathode LED display with black surface ink colour.
- GaAlAs dice material
- Maximum luminous intensity is 5.8mcd at IF = 20mA
- Peak emission wavelength is 660nm at IF = 20mA
- Dominant wavelength is 643nm at IF = 20mA
- Spectral line half-width is 20nm
- Forward voltage is 2.5V (max)
- Power dissipation is 85mW
- Peak forward current is 100mA
- Operating temperature range from -40°C to +85°C
- Super red emitted colour and white diffused lens colour
Applications
Imaging, Video & Vision, Consumer Electronics
