Description

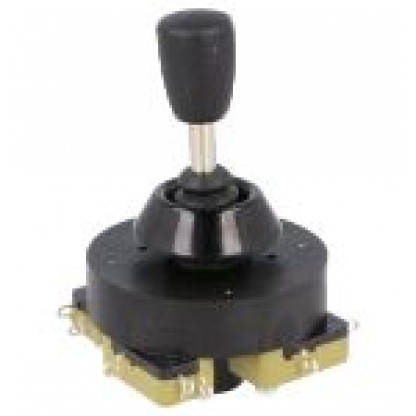

IP67 Joystick Switch, 4 axes, 16 A @ 250 V ac Solder, Tab 250V ac/dc SPDT, -40 +85°C

Industrial Microswitch From Saia-Burgess, this selection of joystick controllers are available with either 2 or 4 directional gates and feature a return to centre action. A robust and durable industrial microswitch, these joystick controllers feature a high degree of environmental protection. Features and Benefits: • 2 and 4 directional gates • Panel mounting with anti-rotational mounting feature • All versions panel sealed to IP67 • 1 switch or 2 switches per gate (on standard version) • Standard – incorporates single pole V3 changeover micro switches • Pre-wired – incorporates fully sealed, V4S changeover micro switches • 22.5mm diameter panel cut out • Low profile panel depth 37mm • Panel thickness 1 to 6.35mm • Overall diameter 71mm • Knob length from panel 60mm
