Description

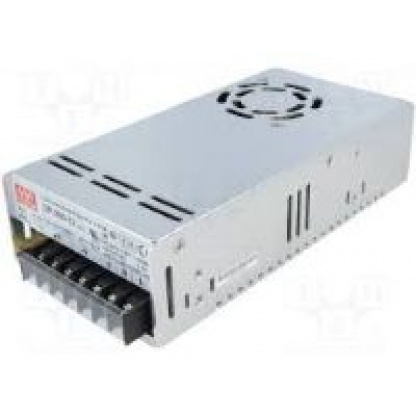

SP-200-12
As used on the RepRapPro Ormerod 2 3D printer. This power supply features auto input voltage switching for AC 110v or 240v operation, and is extremely robust. It will happily power a 200x200mm (8×8) heated bed, as well as NEMA17 steppers and two extruders.
This power supply is for internal use only. Buyer is responsible for ensuring the safety of the installation.
Features:
- Universal AC Input/Full Range
- Built-In Active PFC Function, PF>0.93
- Protections: Short Circuit/Overload/Over Voltage
/Over Temperature - Built-In Constant Current Limiting Circuit
- LED Indicator for Power ON
- 100% Full Load Burn-In Test
- Fixed Switching Frequency at PFC: 67 kHz PWM:134 kHz
| Brand/Series | : | SP Series |
| Configuration | : | Enclosed |
| Current, Output | : | 16.7 A |
| Dimensions | : | 7.83 L × 3.89 W × 1.96 H In. |
| Mounting Type | : | Panel |
| Number of Outputs | : | 1 |
| Operation | : | PFC |
| Output | : | 12VDC@16.7A |
| Power, Output | : | 200 W |
| Primary Type | : | AC-DC |
| Special Features | : | 100% Full Load Burn-In Test, Remote On, Off, Fan Speed Control, Cooling Fan Speed Control, Constant Current Limiting Circuit, Short Circuit Protections, Overload Protections, Over Voltage Protections, Over Temperature Protections |
| Type | : | Embedded |
| Voltage, Input | : | 100 to 264 VAC |
| Voltage, Output | : | 12 VDC |
