Description

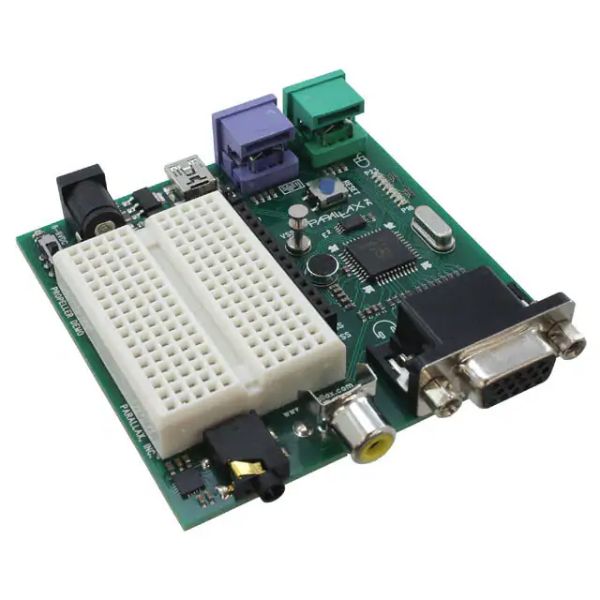

The Propeller Demo Board demonstrates the Propeller’s varied capabilities in a compact and fun platform. You can use it to learn Propeller programming and then develop full-blown applications which generate video and sound, and utilize mice and keyboards. All the requisite power supply and USB programming interface is provided for you. Eight unused I/O pins are available for experimentation. Kit includes Propeller Demo Board.
Features:
- P8X32A-Q44 Propeller Chip
- 24LC256-I/ST EEPROM for program storage
- Replaceable 5.000MHz crystal
- 3.3V and 5V regulators with on/off switch
- USB-to-serial interface for loading and communication
- VGA output
- TV output
- Stereo output with 16-ohm headphone amplifier
- Electret microphone input
- Two PS/2 connectors for mouse and keyboard I/O
- 8 LEDs (share VGA pins)
- Pushbutton for reset
- Big ground post for scope hookup
- I/O pins P0-P7 are free and brought out to header
- Breadboard for custom circuits
Key Specification:
- Power requirements: 6-9 VDC, 2A regulator on board
- Communication: N/A
- Dimensions: 3 x 3 in (76.2 x 76.2 mm)
- Operating temp range: +32 to +158 °F (0 to +70 °C)
- Made in USA
