Description

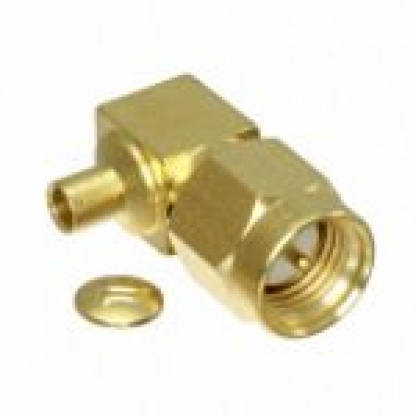

SMA Connector Plug, Male Pin 50Ohm |
| Body Finish | Gold | |
| Body Material | Stainless Steel | |
| Body Style | Right Angle | |
| Brand | AMP | |
| Center Contact | With | |
| Center Contact Material | Beryllium Copper | |
| Center Contact Plating | Gold | |
| Coaxial Cable Termination Type | Solder | |
| Coaxial Cable Type (RGU or Mfg.) | 405 Semi-Rigid/2.16 [.085] | |
| Connector Type | SMA | |
| Coupling Nut Finish | Gold | |
| Coupling Nut Material | Stainless Steel | |
| Dielectric Material | TFE Fluorocarbon | |
| Frequency | DC – 12 GHz | |
| Gasket Material | Silicone Rubber | |
| Gender | Plug | |
| GovernmentIndustry Qualification | No | |
| Impedance (Ω) | 50 | |
| Insulation Resistance (MΩ) | 5,000 | |
| Lead Free Solder Processes | Not relevant for lead free process | |
| Length (mm in) | 17.15 [0.675] | |
| Panel Attachment | Without | |
| Product Type | Connector | |
| Retaining Ring Material | Beryllium Copper | |
| Retractable Collar | Without | |
| RoHSELV Compliance | RoHS compliant, ELV compliant | |
| RoHSELV Compliance History | Always was RoHS compliant | |
| Safety Wire Holes | Without | |
| Shrink Tubing | Without | |
| Snap-Lock | Without | |
| Terminate To | Coaxial Cable |
