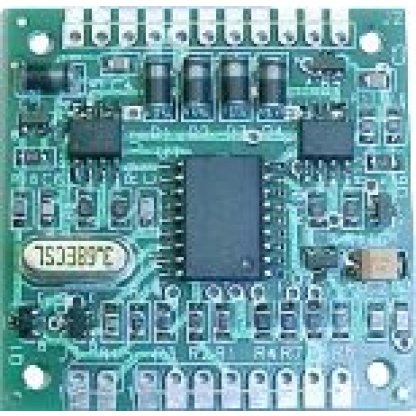

Description
PRINT METHOD ……………. Impact Dot Matrix, 5 x 7 format (2 dot space between characters)
CHARACTER SET ………….. 96 ASCII characters (Hex 20H to 7FH), plus 11 control characters
# OF COLUMNS …………….. Auto detect – 16 (M150), 24 (M160), 32 (M163) or 40 (M164/170)
PRINT FEATURES …………. Double Width, Double Height, Underline and Right-to -Left Printing
POWER SUPPLY
OPERATING VOLTAGE …… +5 VDC ±5% (may be operated from 4 NiCad batteries)
CURRENT (LOGIC) …….. <800 uA standby 50 mA printing (max)
(PRINTER) …. 0 mA standby 120 mA Paper Feed, 500 mA printing (avg) 1.5 A instantaneous (peak)
SERIAL INTERFACE
CHARACTER FORMAT ……. 8 data -bits/character, no parity, 1 stop bit (N81)
BAUD RATE ………………….. 2400 bps or 9600 bps selectable
LINE POLARITY …………….. Auto detect w ithin one character frame period (direct or inverted)
LINE VOLTAGE ……………… Logic level 0V to 5V or RS-232 Leve l ±5V to ±15V
