Description
Sold in Pack of 2

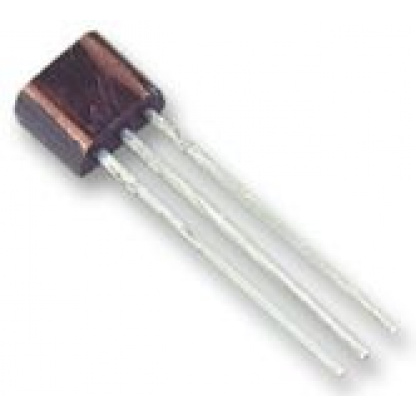

ZTX749 Bipolar, PNP, 2A, 25V
| Transistor Type | PNP |
| Maximum DC Collector Current | 2 A |
| Maximum Collector Emitter Voltage | 25 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 1 W |
| Minimum DC Current Gain | 15 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -35 V |
| Maximum Emitter Base Voltage | -5 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | -0.9 V |
| Transistor Material | Si |
| Dimensions | 4.77 x 2.41 x 4.01mm |
| Length | 4.77mm |
| Maximum Operating Temperature | +200 °C |
| Height | 4.01mm |
| Width | 2.41mm |
| Maximum Collector Emitter Saturation Voltage | -0.12 V |
