Description

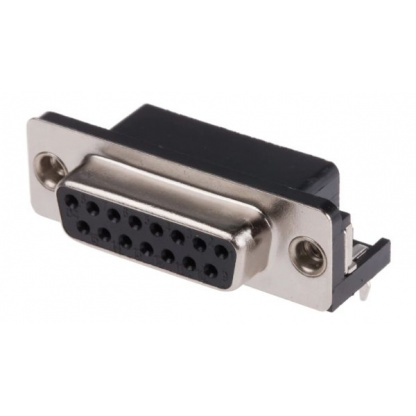

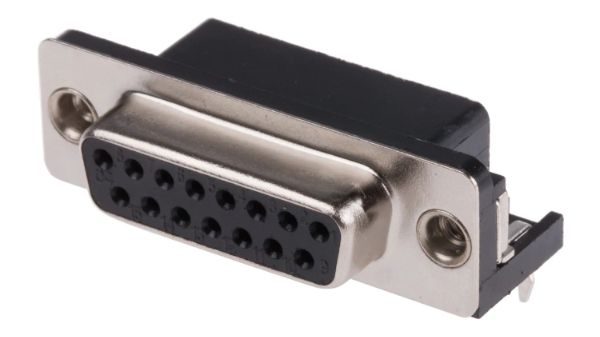

Superior quality commercial right angle PCB mounting sub-D connectors. Manufactured to MIL-C-24308 dimensional specifications. All types have tin plated shells, with grounding fingers on plug shells to ensure full EMI/RFI shielding. Jack posts and PCB locating lugs are incorporated. Standard 7.2mm (U.S.) footprint.
RoHS compliant
| Insulator material: | Glass filled polyester |
| Contact material: | Phosphor bronze, gold plate over nickel |
| Contact rating: | 5 A |
| Dielectric strength: | 1000 VAC |
| Insulation resistance: | 1000M minimum at 500 VDC |
| Contact resistance: | 30mmax. at 100VDC |
| Temperature range: | -55°C to +105°C |
