Description
Sold in packs of 10

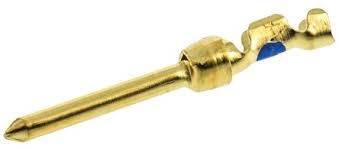

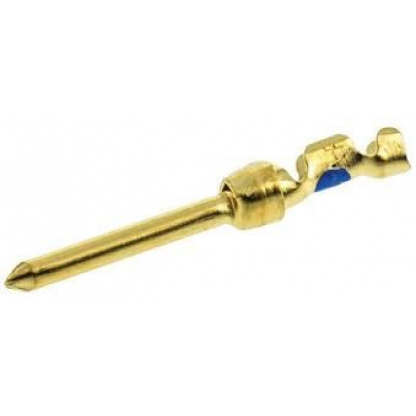

TE Connectivity AMPLIMITE D-Subminiature Connector
Suitable for Amplimite D-sub housings.
Product type: Contact
- Connector type: Pin
- Contact plating: Gold
- Contact plating thickness: .76µm
- Contact base material: Brass
- Solder tail contact plating material: Tin over Nickel
- Termination method to wire/cable: Crimp
- Wire size (AWG): 28-24
- Insulation diameter: .76 – 1.02mm [.03 -.04 in ]
- Contact retention: Crimp Snap-In
- Insulation support: Yes
- Wire range: .08 -.22mm² [ 28 – 24 AWG ]
- Packaging quantity: 500 (Small Reel)
- Mftrs part no. 5-166054-1
