Description

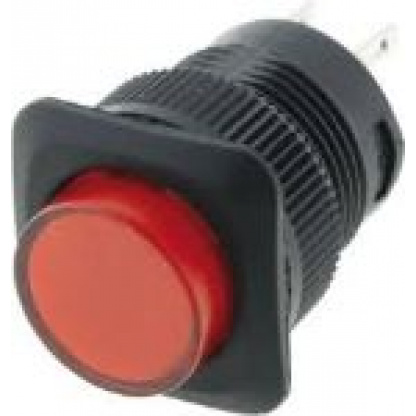

A range of 1.5A SPST push button switches with momentary or latching action. They are available with a range of button colours, with or without LED illumination.
- Connections: Solder pins
- Contact resistance: Max 50mΩ
- Dielectric strength: 1500V AC
- Front panel thickness: Max 7mm
- Insulation resistance: Min 100MΩ/500V DC
- Mounting diameter: 16mm
- Switch features: protuding
- Switching current (max.): 1.5A
- Switching voltage: 250V AC
- Approval: UL
- SCI R13-508 Series
If an LED is fitted he body is a black plastic with the LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 2.2V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply.
