Description

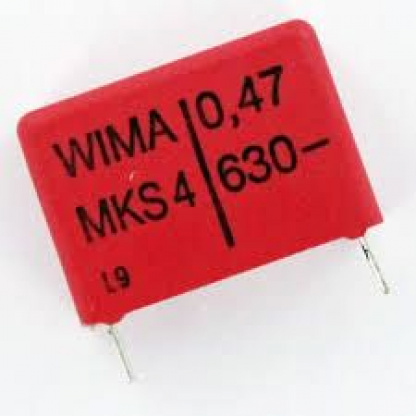

Audio MKS4
A industry standard metallised polyester (PET) capacitor. The capacitor has a high volume/capacitance ratio and is suitable for general purpose DC applications such as by-pass, blocking, coupling and decoupling, timing.
- Tolerance 10%
- Dimensions 5 x 11 x 13mm
- PCM 10mm
- Encapsulated in a red flame retardant plastic case with epoxy resin seal
- Self-healing
- UL 94V-0
- Wima MKS4 series
- Type : Radial leaded
- Material : Polyester
- Operating Temperature : -55 to +100°C
- 10mm Pitch
-
Capacitance
22pF.2nF4.7nF6.8nF10nF15nF22nF33nF47nF68nF100nF150nF220nF330nF470nF680nF1µF1.5µF2.2µF3.3µF4.7µF6.8µF10µF15µF22µF33µF
-
Voltage
63V100V250V400V630V1000V2000V
