Description

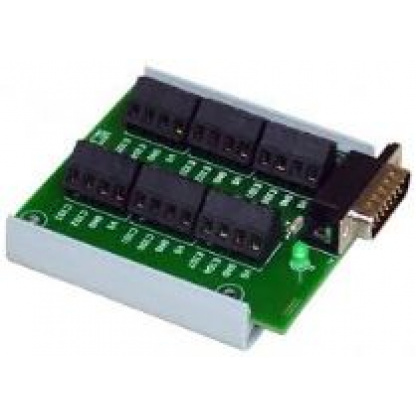

The CB15 terminal board connects to the DB15 connector on applicable LabJacks (not the U12). It provides convenient screw terminal access to the 12 digital I/O available on the DB15 connector. The CB15 is designed to connect directly to the LabJack (see image below), or can connect via a standard 15-line 1:1 male-female DB15 cable (not included).
The green LED on the CB15 is directly powered by the 5-volt supply (Vs) from the LabJack, so it should be lit whenever the CB15 is connected to a powered LabJack.
The CB15 PCB is mounted to a piece of Snaptrack. The Snaptrack is DIN rail mountable using TE Connectivity part #TKAD (not included).
For more information about the I/O lines, see the Users Guide for the applicable LabJack. Here are a few useful links:
- U3 Section 2.5 (Flexible I/O)
- U3 Section 2.8 (Digital I/O)
- U3 Section 2.11 (DB15)
- U6 Section 2.8 (Digital I/O)
- U6 Section 2.12 (DB15)
- UE9 Section 2.9 (Digital I/O)
- UE9 Section 2.13 (DB15)
Table 1. DB15 Pinouts and Names
Pin # | Pin Name | Pin # | Pin Name | |
1 | VS | 9 | CIO0 | |
2 | CIO1 | 10 | CIO2 | |
3 | CIO3 | 11 | GND | |
4 | EIO0 | 12 | EIO1 | |
5 | EIO2 | 13 | EIO3 | |
6 | EIO4 | 14 | EIO5 | |
7 | EIO6 | 15 | EIO7 | |
8 | GND |
