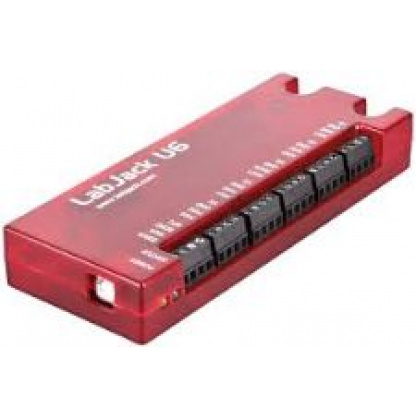

LabJack U6 – 14 Channel Multifunction DAQ Unit – 20 digital IO, Counters, Encoders

£277.00

1 in stock

SKU: LABJACKU6 Category:

Description

Home            Product support files

Labjack U6 USB data acquisition unit with analogue and digital I/O unit for data logging, data acquisition, measurement and control applications. Supplied with a wide range of FREE Data logging and oscilloscope software and examples for use with most programming and DAQ packages.

  • 14 Analogue Inputs (16-18+ Bits Depending on Speed)
  • Single-Ended Inputs (14) or Differential Inputs (7)
  • Expandable to 80 single ended or 40 differential with the Mux80 Card >>
  • Instrumentation Amplifier Inputs – software Programmable Gains of x1, x10, and x100
  • Analogue Input Ranges of ±10, ±1, and ±0.1 Volts
  • Built-In CJC Temperature Sensor for themocouples
  • 2 Fixed Current Outputs (200/10 uA)
  • 2 Analogue Outputs (12-Bit, 0-5 Volts)
  • 20 Digital I/O
  • Up to 2 Counters (32 Bits Each)
  • Up to 4 Timers (Pulse Timing, PWM Output, Quadrature Input, …)
  • Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
  • Supports Software or Hardware Timed Acquisition
  • Maximum Input Stream Rate of 50 kHz (Depending on Resolution)
  • Capable of Command/Response Times Less Than 1 Millisecond
  • Built-In Screw Terminals for Some Signals
  • USB 2.0/1.1 Full Speed Interface
  • Powered by USB Cable
  • Drivers Available for Windows, Linux, Mac and Pocket PC
  • Examples Available for C/C++, VB, LabVIEW, Python, and More
  • DAQFactory Express Software
  • Enclosure Size Approximately 75mm x 175mm x 25mm
  • Rated for Industrial Temp Range (-40 to +85 °C)

Additional information

Weight 0.222 kg
