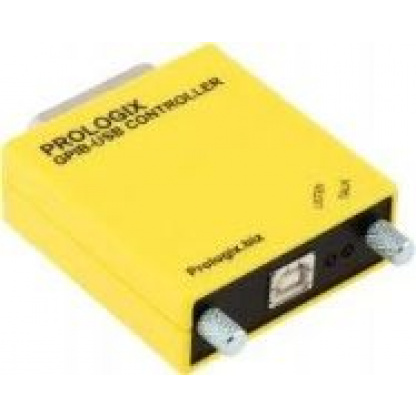

Prologix GPIB-USB Controller

£143.00

1 in stock

SKU: GPIBUSB Category:

Description

 Prologix support page

This GPIB-USB controller converts any computer with a USB port into a GPIB Controller or Device. In Controller mode, the GPIB-USB controller can remotely control GPIB enabled instruments such as Oscilloscopes, Logic Analyzers, and Spectrum Analyzers. In Device mode, the GPIB-USB controller converts the computer into a GPIB peripheral for downloading data and screen plots from the instrument front panel. In both modes, the GPIB-USB controller interprets high level commands received from the host computer and performs the appropriate low-level GPIB protocol handshaking.

  • Low cost GPIB to USB converter
  • Controller mode – remotely control GPIB instruments via USB
  • Device mode – converts PC into GPIB peripheral to enable screen plots and printing
  • Uses Virtual Com port, so can be used with all software capable of sending ASCII to a Com port
  • No GPIB cable needed; controller plugs on to instrument
  • Standard IEEE 488 (Male) connector
  • Compatible with LabVIEW, LabWindows, VEE, TestPoint, DAQFactory
  • Drivers available for Windows, Linux, MAC and Win CE.NET
  • Optional USB Cable

Additional information

Weight 0.074 kg
